Worklog : CHAPTER 1 – WHY MINECRAFT?

In first stage to begin with , its all happen when my Son , he now 4 years old and he kindly addicted to play Minecraft . Before this I just let him to play the classic Minecraft until he start to do some toward creativity on his way . I purchase full games to unlock more feature .




This is how I comeout to do Minecraft concept for this modding event , actually its quite exiting to show to my son when this mod finish soon! .

A start has begun , me my self tried out Minecraft game itself and comeout with Thermaltake RAM build on game

No description available.



TADAAAAA! . Lets wait for another update with another chapter soon!





Link to comment
Share on other sites

Worklog : CHAPTER 3 – RAM DISEMBBLE

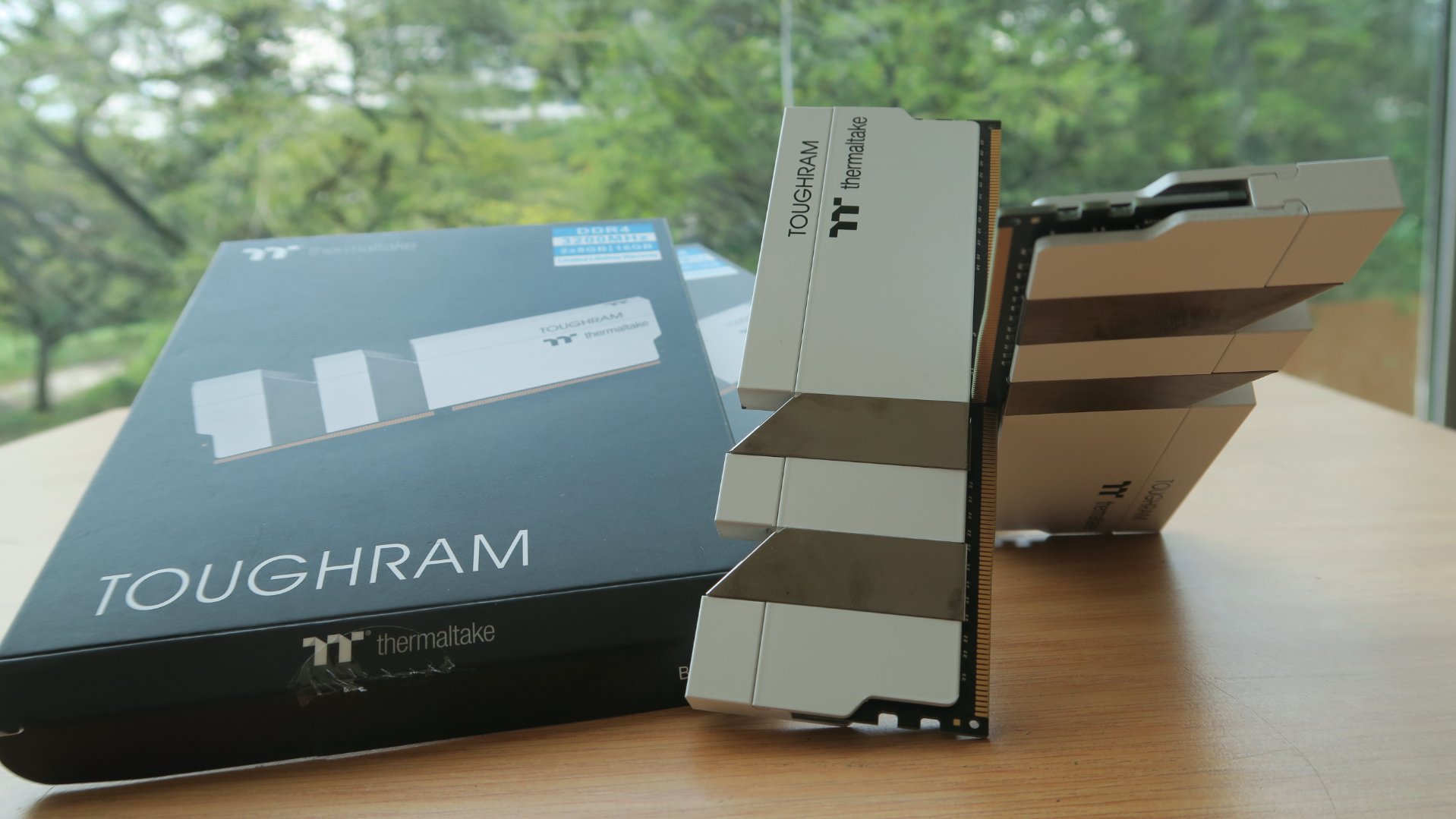

On this chapter I would like to start dissemble of Thermaltake ToughRam . This is because I wanted to fully utilize of possibility to modified the ram cover.

1854988910_WhatsAppImage2020-12-14at4_01_19PM.jpeg.4cdb74e8e3d5e6925c929121eb7635b2.jpeg



Next stage I will show u guys on how I did Reverse engineering , or easy to say … redesign back the original heatsink plate and cover to CAD / 3D .



Now I start to measure the dimension of heatsink plate , and everything that exist on the cover . Its gonna be easier for me to arrange and thinking of what kind concept to apply on 3D










YEAHHH! , finally I got all dimension correctly , maybe it might have some tolerance 0.1 to 0.5 , but its still consider acceptable as for me for making 3d and later i can arrange design and apply to physical one .





Link to comment
Share on other sites

Worklog : CHAPTER 4 – TURN TO CAD/3D



Now we are on Chapter 3 , How u guys doing … I hope and pray all u guys in good health and having a very very nice day .



Ok in this chapter , from last chapter we talk about assembled of RAM and taking dimension , Now I will show u guys , how I end up everything to turn every data I have into 3D .






We gonna start from RAM itself , from data I collected , now key all data dimension to apply on CAD drawing . As to build the 3D for it .



127065965_236897194528074_1088898173572877596_n.png.a87b156bd3d1b4d1322b3aa07c1ab187.png



Here we go , RAM 3D is done , now lets do for Heatsink plate and top heatsink too .

To do 3D can I do really need focus on tolerance , its must be apply directly on 3d so I wont miss on produce for later . For sure I really hope it will come out perfectly .





128019212_202298331334626_563221016476609940_n.thumb.png.cba523e998e675197f0238df17b71c9a.png



127107870_289797025744031_6572109340694662986_n.png.34596ecd872d8ee30b118c3134e75a20.png





On this stage we just finish to do the complete CAD drawing for ToughRAM , wow .. Maybe we can send to mass produce too (jk) haha . Anyway … more to go , we need to testout fitting and everything .. But lets get into another upcoming chapter , STAY TUNED guys!! Lets enjoy doing this .



Link to comment
Share on other sites

CHAPTER 5 – APPLYING CONCEPT

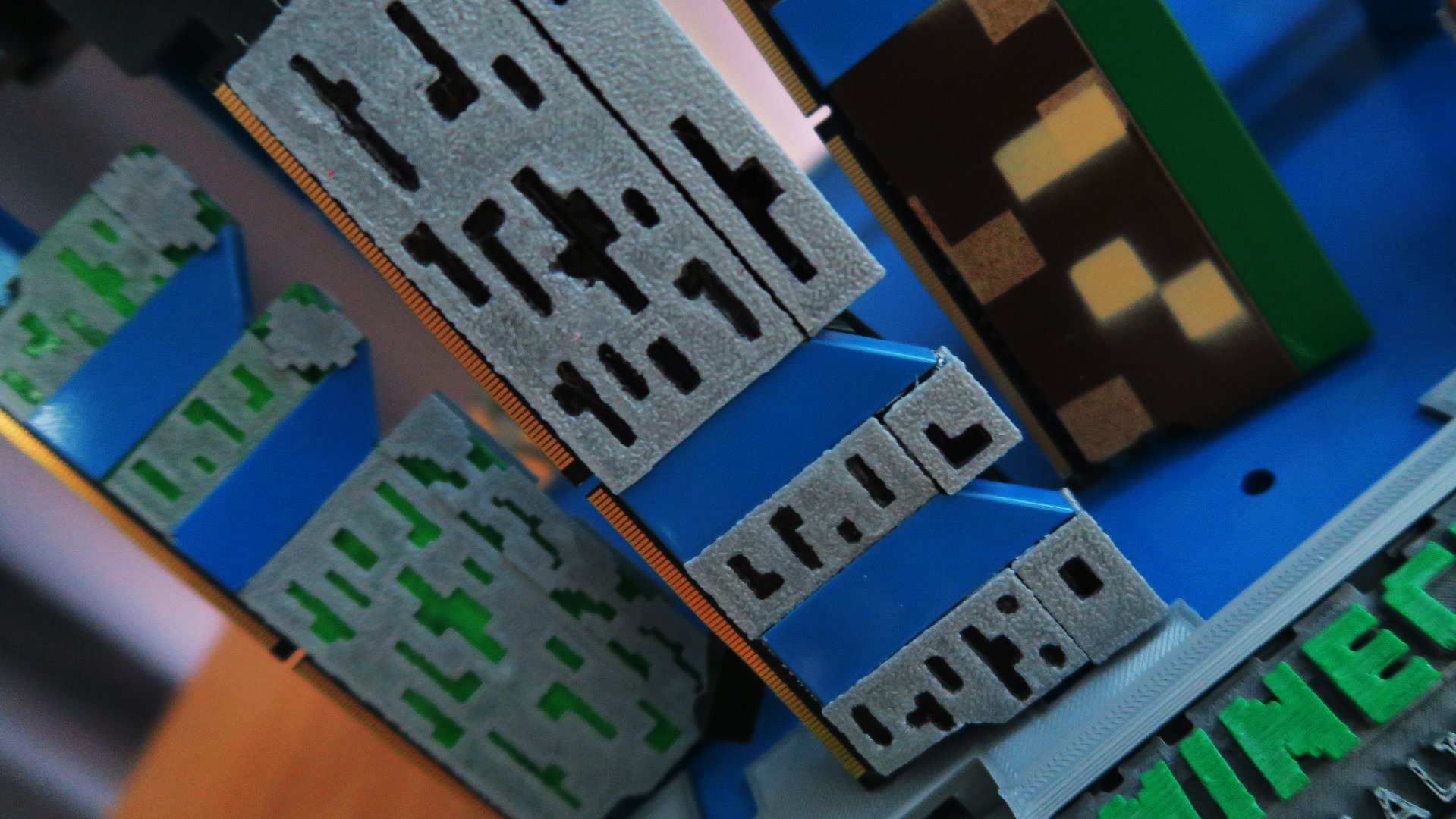

Hi guys here some update not this chapter , since previous chapter will already done doing some 3D , now lets apply some minecraft concept into 3D

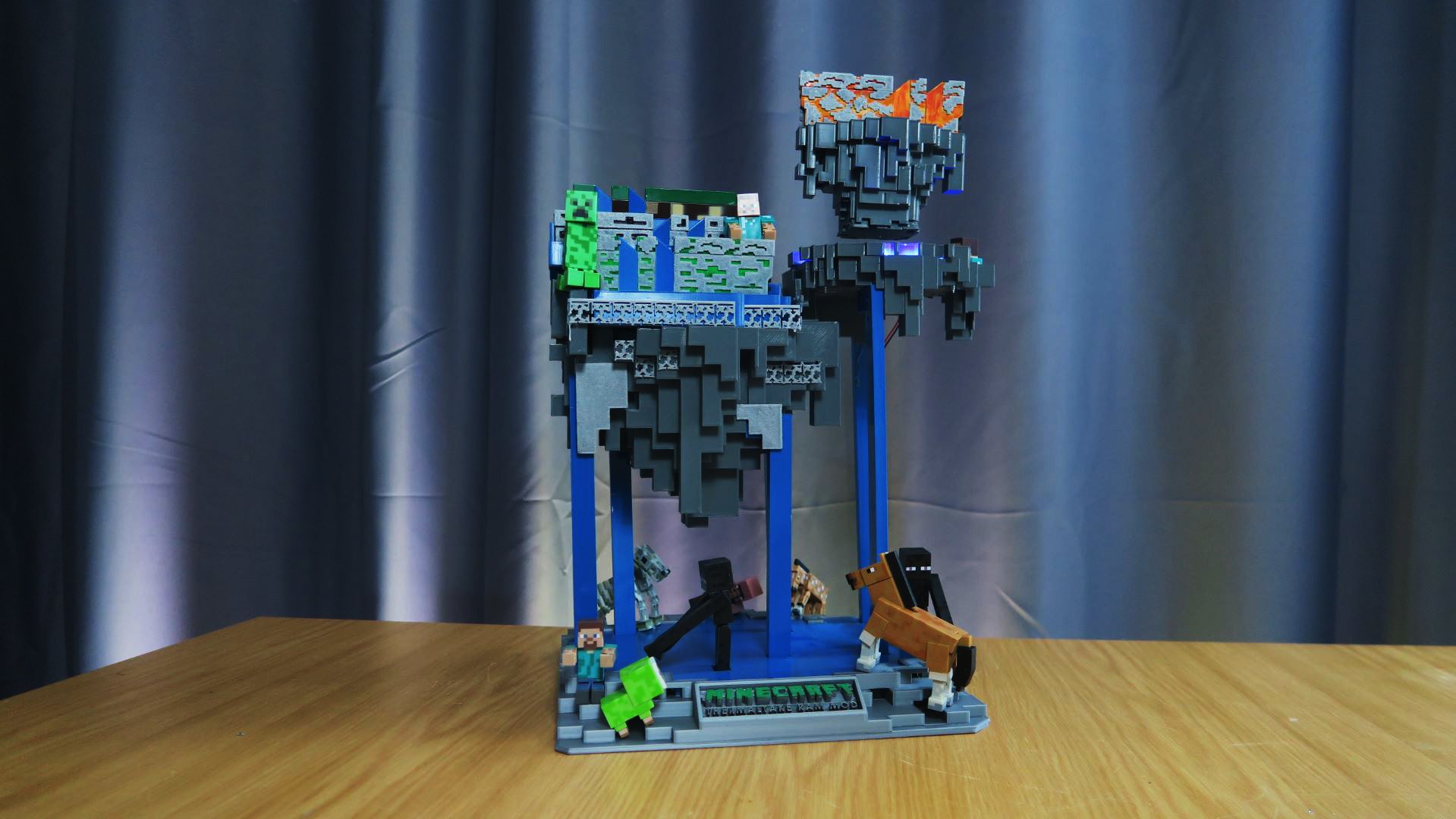

and another plan also is to make a stand for the minecraft ram concept , by thinking for that we wanna go with some floating city with waterfall falling from it .



Still more part to go , I will update on another chapter .
See ya !
