Thank you for this amazing opportunity and congrats to the other winners!

Much appreciated man! 🙏

And a quick "Making of" Shorts to see a bit of the process in video: https://youtube.com/shorts/-Dl19cVhBzw?si=Mm-M1YXBmUo0hoIo

And now some B-roll:

Here's a quick video on the GPU mod I made using the Palit Maker 3D model:

Presenting TRISMEGISTO - my vision of the Tower 600 case! Angled top and bottom, floating centerpiece and tubing everywhere for a mix of my usual Sci-Fi inspiration paired with some industrial elements. The name, color scheme and choice of materials come from Trismegistus (Persona 3 videogame), with this predominant aluminum finish combined with brass details and red acrylic side wings to add depth and color shifts depending on the point of view. The hardline tubing is partly clear and partly covered with corrugated pipes, creating an aggressive industrial effect which plays really well with the angles and colors/finishes of the build. Huge thank you to the sponsors of this competition @thermaltake_global @palit_global @asrock_official @intelgaming @seagate For providing all the hardware: Thermaltake The Tower 600 - https://www.thermaltake.com/the-tower-600-mid-tower... Asrock Z890 Lightning WiFi - https://pg.asrock.com/.../Z890 Lightning WiFi/index.asp Seagate SSD Storage - https://www.seagate.com/.../intern.../ssd/barracuda-510-ssd/ Intel Core Ultra 7 265K - https://www.intel.com/.../intel-core.../specifications.html GeForce RTX 4070 Ti Super GamingPro - https://www.palit.com/palit/vgapro.php?id=5057&lang=en Thermaltake Toughram XG DDR5 64Gb - https://www.thermaltake.com/toughram-xg-rgb-d5-memory... Thermaltake Toughpower GF A3 1050W - https://it.thermaltake.com/toughpower-gf-a3-gold-1050w-tt... Thermaltake Watercooling - https://www.thermaltake.com/.../custom-liquid-cooling.html More content coming soon!

This is the last update before the final result! Let's wrap it up the remaining tubing and some details The tubing was a real challenge on this one, the 20 degree angle of the top and bottom panels didn't play nice with it, because it created a lot of offsets that needed to be addressed with some slightly intricate bending. Luckily PETG can withstand multiple heat and reheat! To spice things up a bit, I sourced some corrugated pipes to cover some of the hard tubing to keep that industrial look going. Also took me a while to figure out which tubing to cover and which leave clear Leak testing time! This looks killer even laying horizontal to be honest, but it would need a custom pedestal for this that I don't have time to make now. Maybe after the deadline! Of course the coolant must be red! To achieve a darker tone, similar to the red acrylic I'm using, I mixed some red and black concentrates. Now to the final touches! Handcut a quick cover out of the same red acrylic for the motherboard, as that blue/purple on it really didn't go well with the theme. Problem solved! Next was the GPU mod making use of the Palit Maker feature! Palit offers 3D models to 3D print your own custom shroud for their GPUs. I printed a white shroud with grey accents and then glued on a couple of brass strips to blend it in. I originally also put a simple strip of red acrylic in front of the fans but I didn't like the look so I ditched it. The red will come from the lighting! And cherry on top, a little cover for the pump bottom, good chance to slap my logo on this baby also sneak peek of the final shooting setup!

I finally attached both of the Tower 600 with all the required tubing and wiring. I also put red acrylic behind the honeycomb grid to go along with the theme. This meant I could finally mount the little acrylic stand and put it on the base from the Tower 600 Chassis kit. Looking good! Now time for a really fun part of this project imho: corrugated pipes to route the front I/O cables and the passthrough power cord I'm using corrugated pipe with custom 3D printed clamps to securely attach it to the panels. This gives the whole thing kind of an industrial Sci-Fi vibe while cleanly routing cables that would otherwise be in the way. It also preserves the floating look of the centerpiece, because of course the easy way would have been to just route them directly from the top and bottom, but the clear acrylic braces would have lost their purpose! PSU mounted too, now time to start sorting out all the cable management! This is no easy task since this design doesn't leave much space for cables. Could be way worse though considering how compact that compartment is, especially with the PSU inside! Looking forward to the "where is the PSU?" questions

It's time to start the final assembly while I finish off some remaining parts and modifications! This whole structure is pretty complex and requires careful assembly because of tolerance and the use of angles. If I don't tigthen up all the screws in the right order, the rigidity of the structure may be compromised. Meanwhile, I designed and printed a new bracket for the front I/O panel of the Tower 600 to be mounted directly onto the top cover rather than to the case itself. Then I cut and polished the red acrylic side pieces which really bring the whole thing together. This got me very excited to see the final result! I also started putting together the cooling portion of the build, with radiators and fans. Still need to design and produce a custom bracket for mounting the res/pump. And also a quick test fit of the main components Both the top and bottom Tower 600 cover are getting custom passthrough ports to support my custom loop madness. The bottom one also received a passthrough power port for a clean and unique power chord routing.

Alu parts finished, acrylic polished, and everything washed up and ready to be assemble! Just need to print some more brackets and stuff now, as well as figure something out for the GPU mod. Final rush

The grind continues! Now we'll be taking a look at probably the most sensible parts, because it required very tight tolerances to perfectly fit the original case. These will replace the top and bottom structural panels. The main challenge here was getting the attachment points for the plastic covers just right so that they would clamp in place securely and be detached just as well! Turned out great so I doubled down! Only thing I had to add after machining was just some chamfering on both sides of the clamp holes. Continuing with the structural parts, I moved to the 15mm clear acrylic for the centerpiece connecting brackets as well as the pedestal. Quick fit test! Once the clear acrylic was done, I took out the smoked one to cut the two top and bottom panels which will hold passthrough fittings and also those little grey brackets that you'll see more of soon enough! Also went ahead and printed the side air vent connecting parts and cut the brass strips. I decided to go with white 3D printing filament as it perfectly matches the white of the original case parts. This is pure metal shine heaven!

Let's start with most of the 8mm aluminum brackets that will do the majority of the work holding everything together! They will require quite some additional holes to the edges which will be done later on the drill press Next up, all the 5mm alu panels that will be assembled to form the centerpiece, where all the hardware will be installed! Air vents are a clear tribute to the bottom front section of the Tower 600, since this unique angled design didn't allow me to use the original panels Meanwhile I completed the modifications on the pedestal from the Tower 600 Stand Kit: a 3mm alu covered was added, together with a little 3D printed piece on the front which will serve as a stop for the case to rest. Here you can also have a glimpse of the abstract finish I will use on the alu panels, just to stir things up a bit More 8mm brackets! Now let's prep all of the 8mm brackets for edge drilling and tapping. Measure, mark, punch, drill and tap... countless times! Hah! Most boring part done

With less than a month left, the design is basically finalized! Not much has changed since the last updated, aside from some small details and parts that were missing. BUT I came up with something to enhance the tridimensional stance of this build, and those two little thingies on the smoked acrylic panel at the bottom are a hint! Also currently thinking about the modifications for the Palit 4070Ti Super Gaming Pro, I'll probably blend it in using the same red acrylic I used for the side elements Last but not least, I finally have a name for this... TRISMEGISTO. It's now time to start preparing the files for the CNC machine, then let's get grinding!

Modelling works continue! I made all the mounting points for the top and bottom sections, which will be connected to the centerpiece using 15mm clear acrylic, for that nice floaty look! I also tackled the pedestal and thought it would be cool to re-use the base from the Chassis Stand Kit as it fits the overall shape pretty well! Of course it needs some modifications itself in order to be used in this new scenario

I THINK I found a semi-final design for the side elements and also started adding some vents, using the same design as the original bottom section of the Tower 600 as well as adding some more aggressive vents with brass fins. At this point I'm likely ditching the wood for top and bottom sections since it's becoming more and more of an aggressive design rather than a clean and classy one, so I'm thinking of using 15mm smoked acrylic to make it extra mean! Can also use the transparency to play with engravings and stuff.

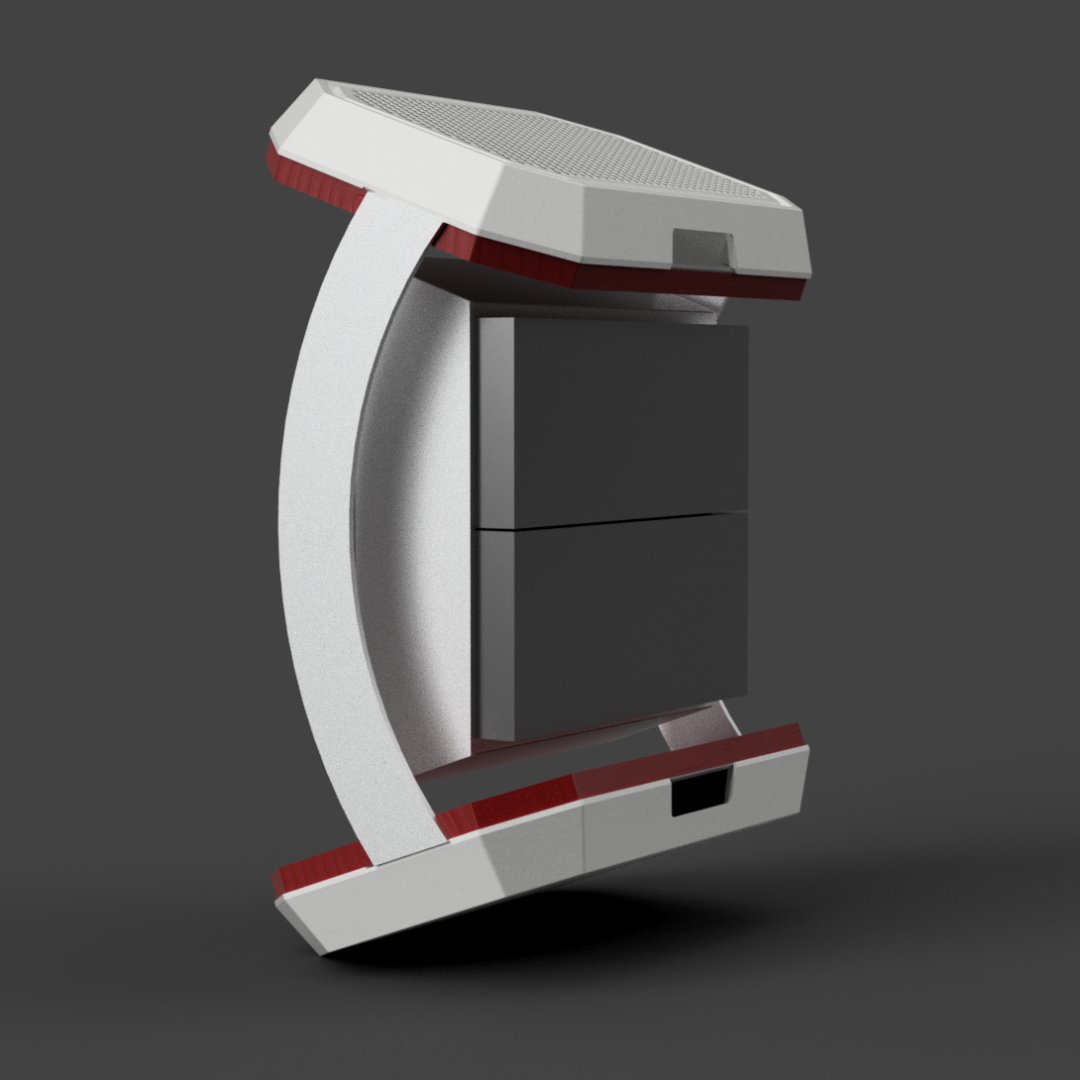

Proceeding with the designing phase... still not sure about those curved thingies but the centerpiece is looking promising, especially the back side!

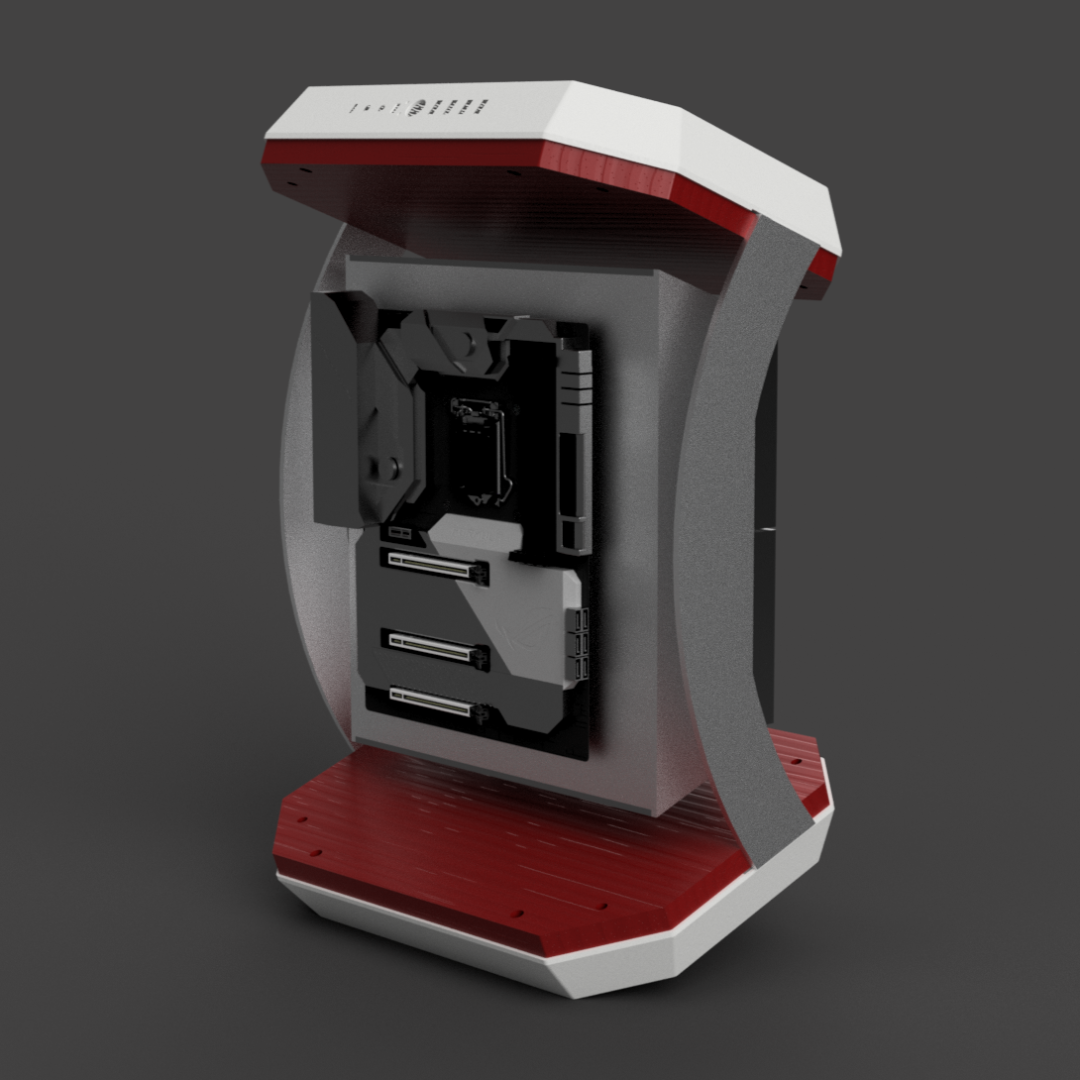

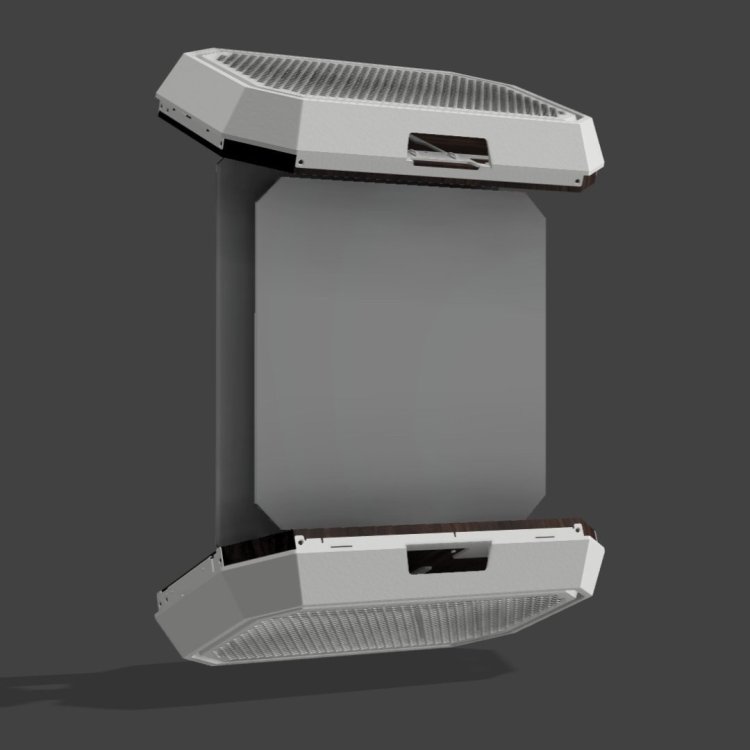

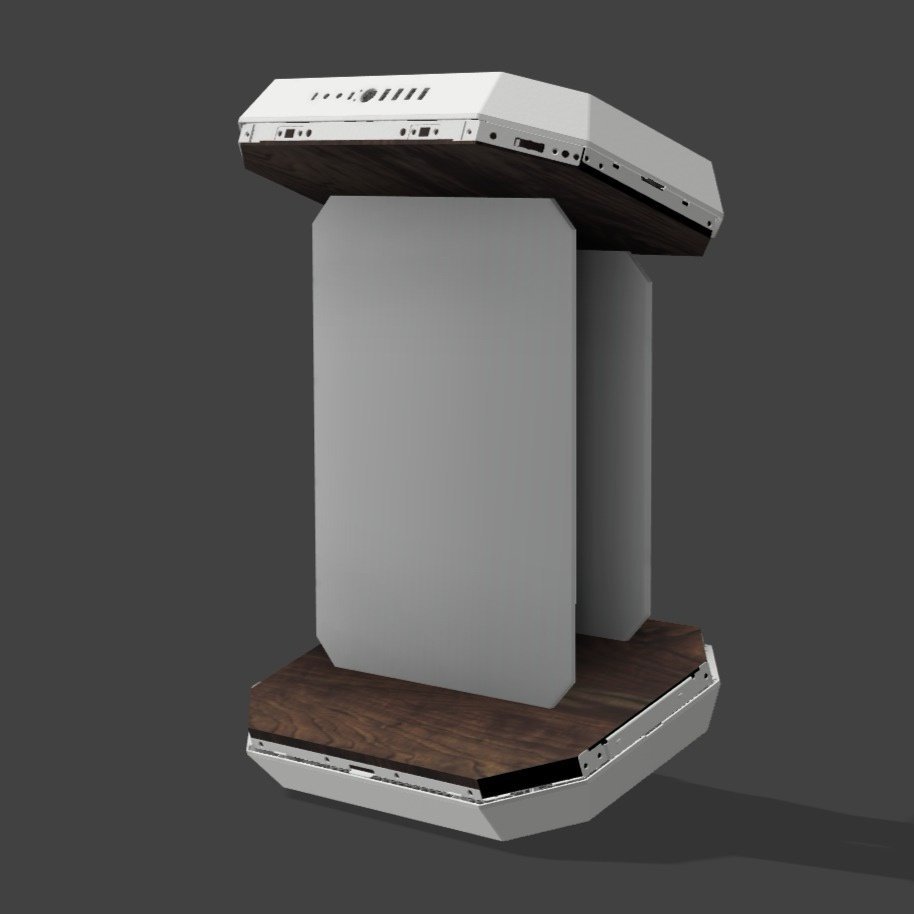

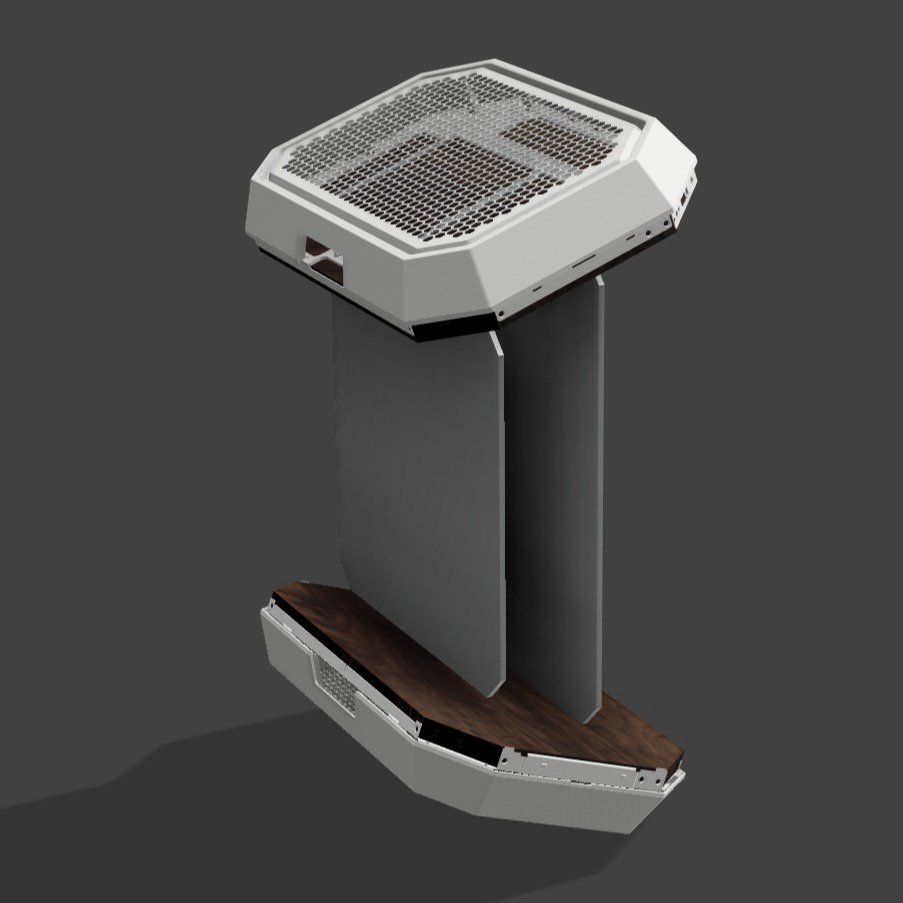

Doing some brainstorming... Tilting the top and bottom panel like this was the very first idea I had when I discovered I was going to work on this case. Let's see how it unfolds

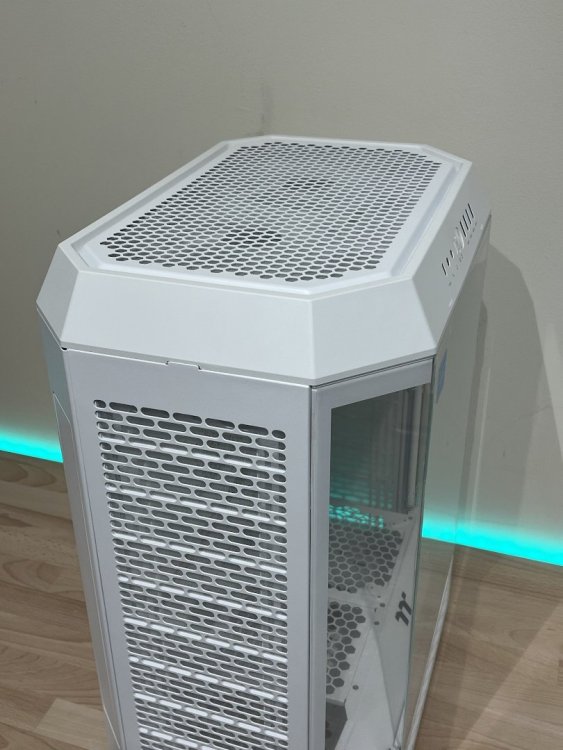

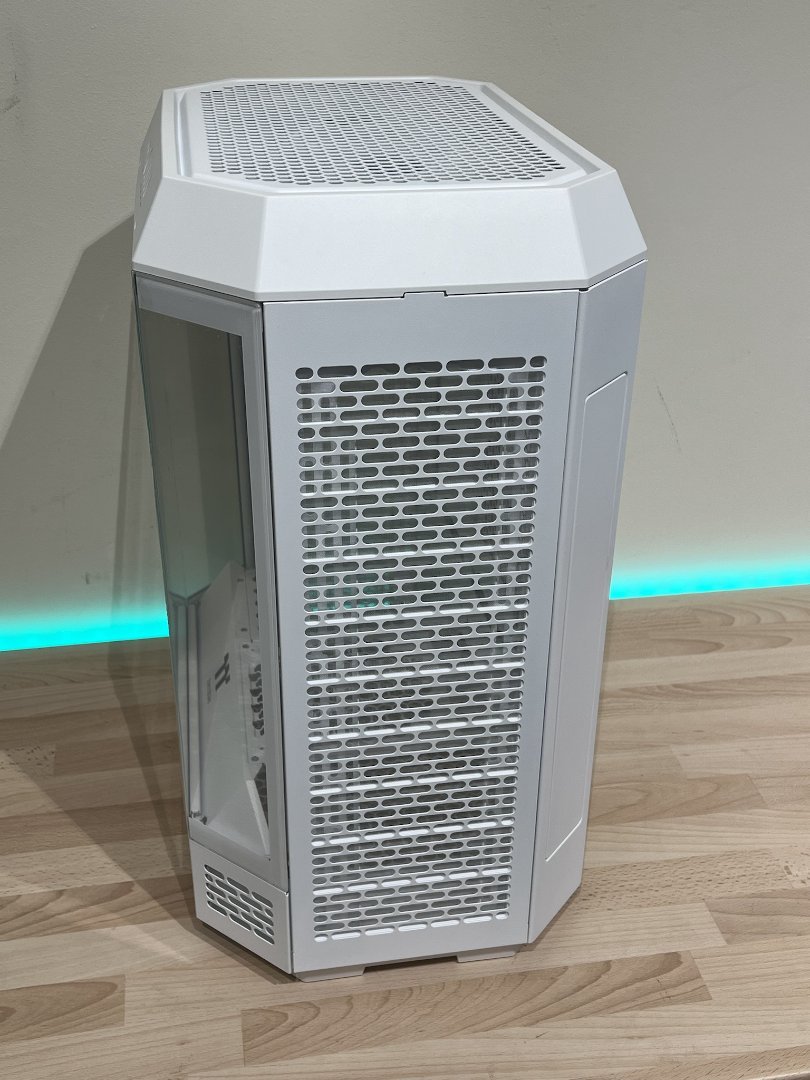

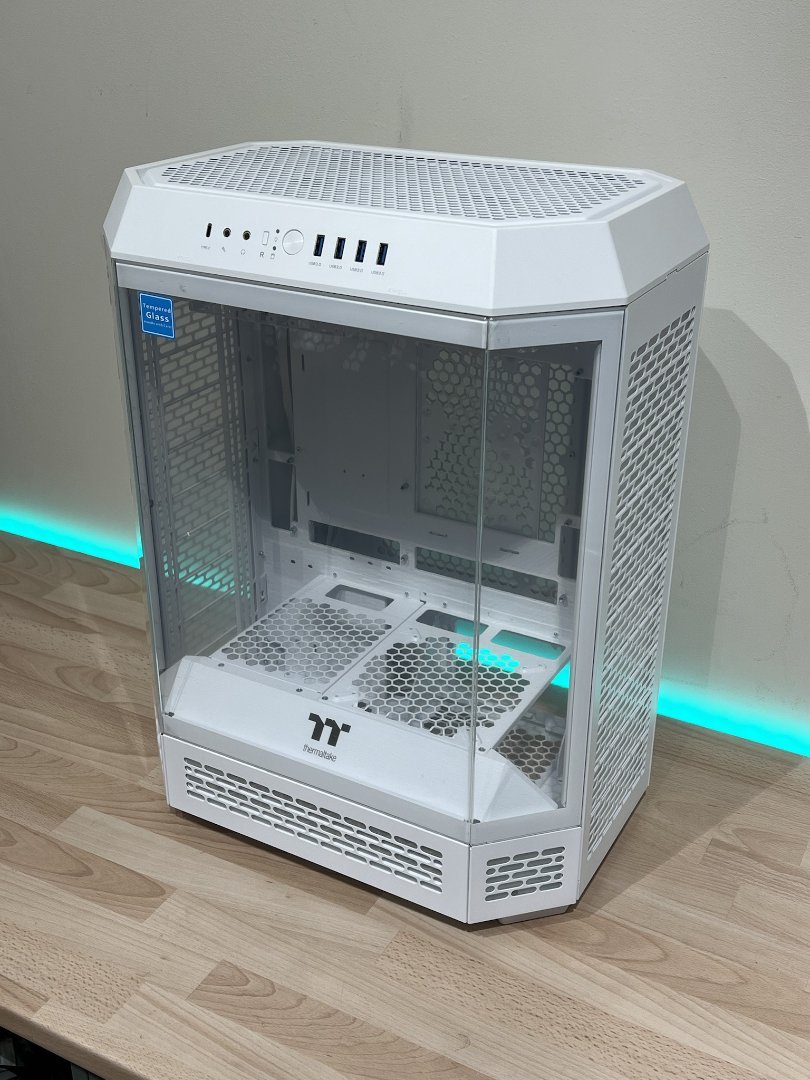

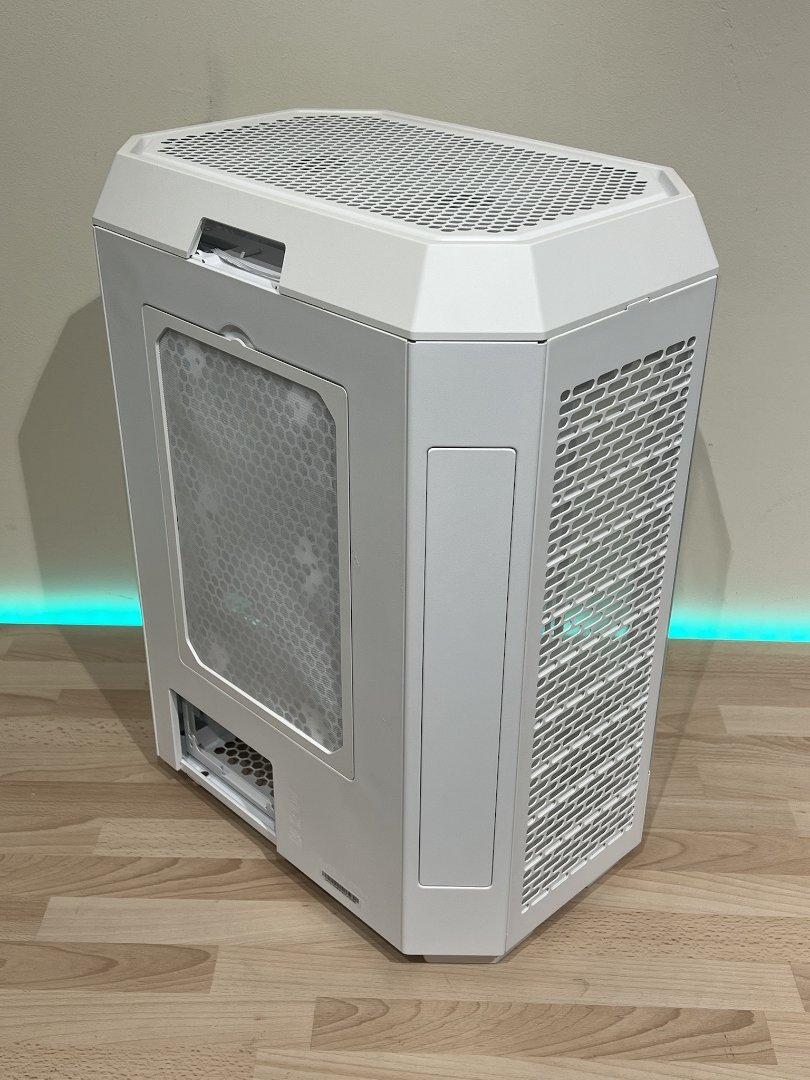

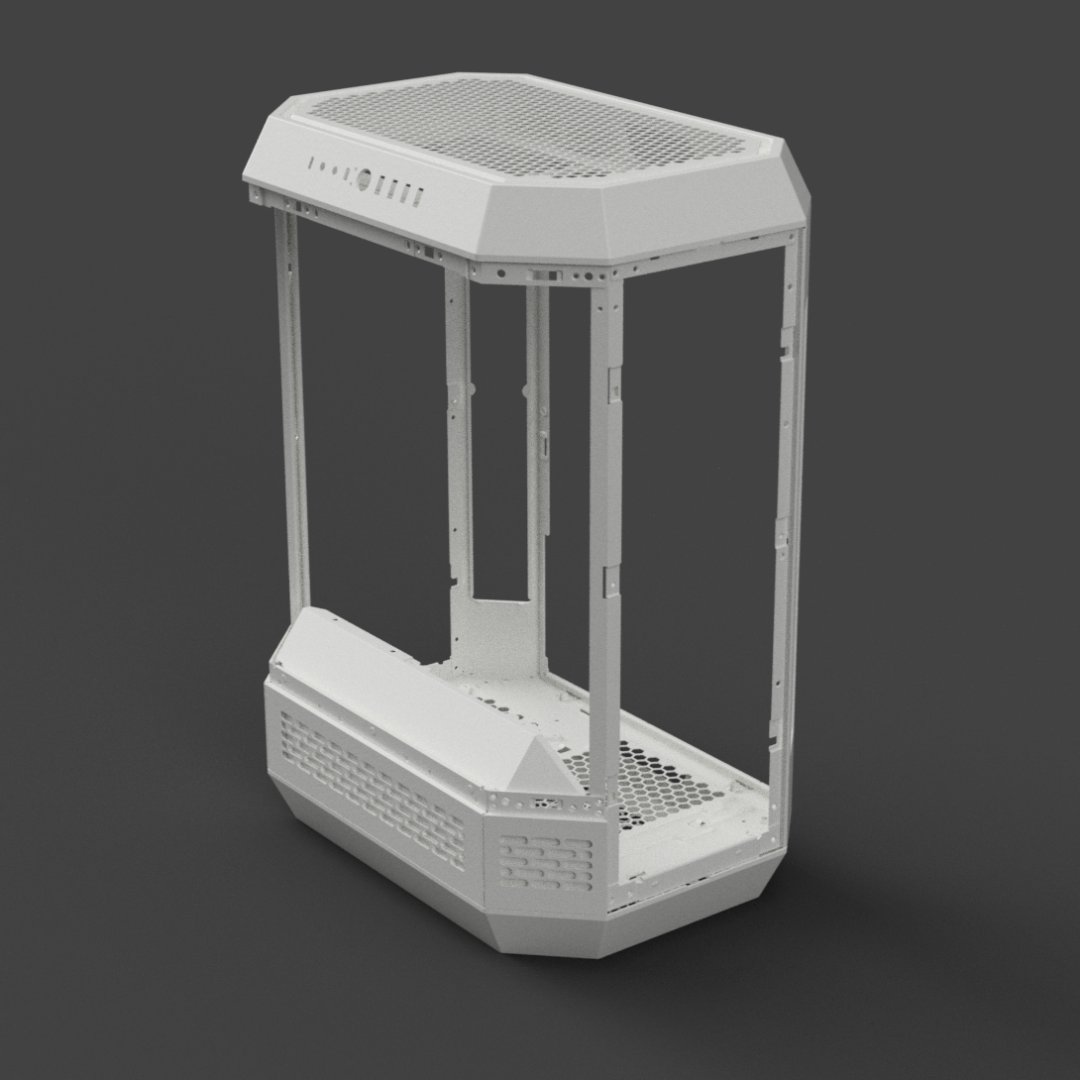

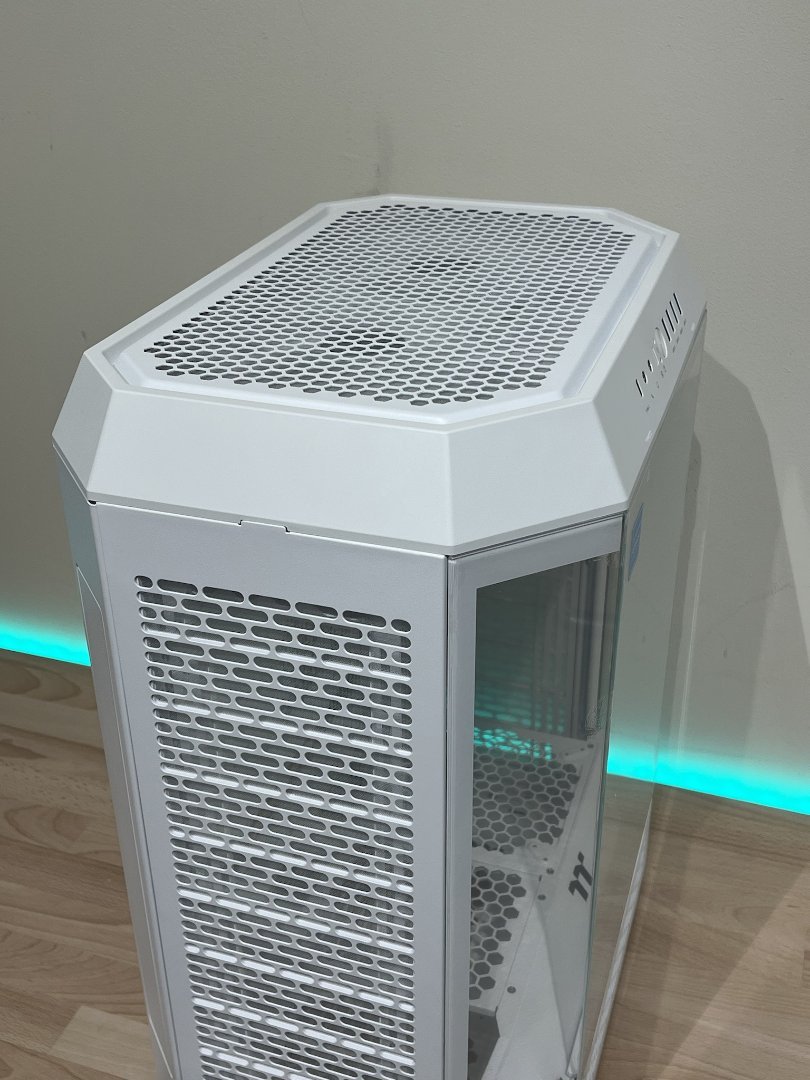

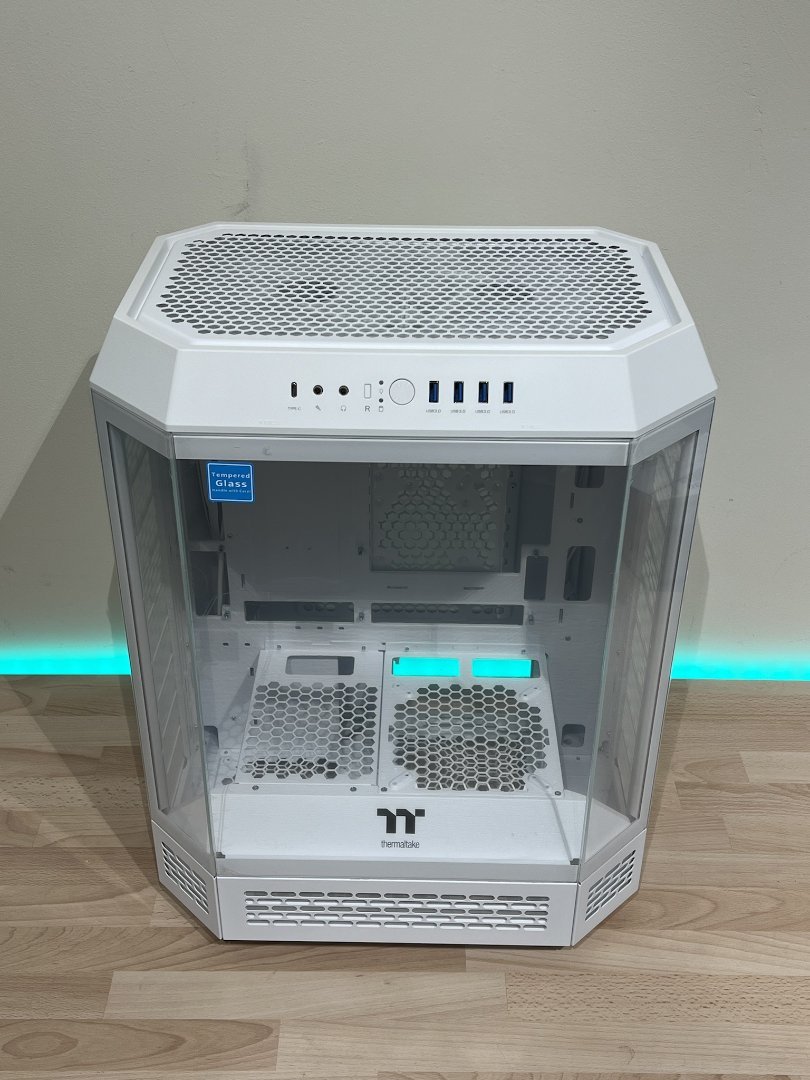

Let's now take a look at the protagonist of this project, The Tower 600 in its white dress! Let's get to some brainstorming on the 3D model. Removed the parts that I'm going to replace/remove for sure, like most of the external panels and all of the internals. I might delete the vertical brackets connecting top and bottom as well, but depends what concept I follow through with

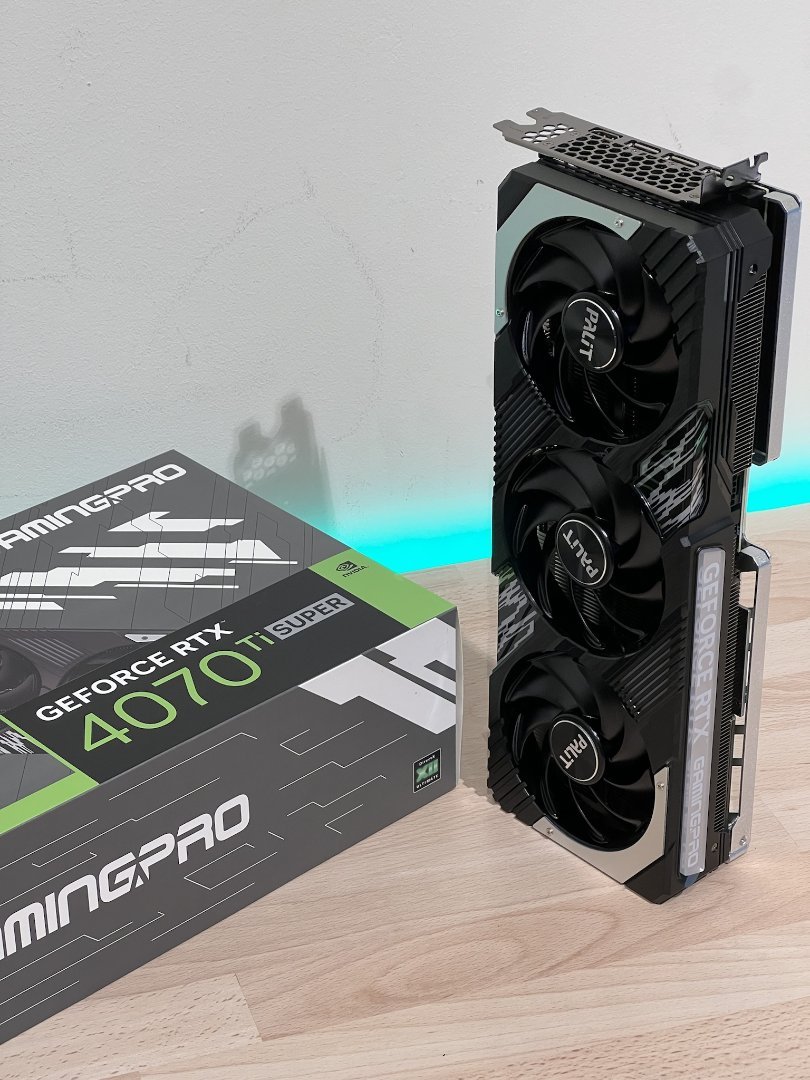

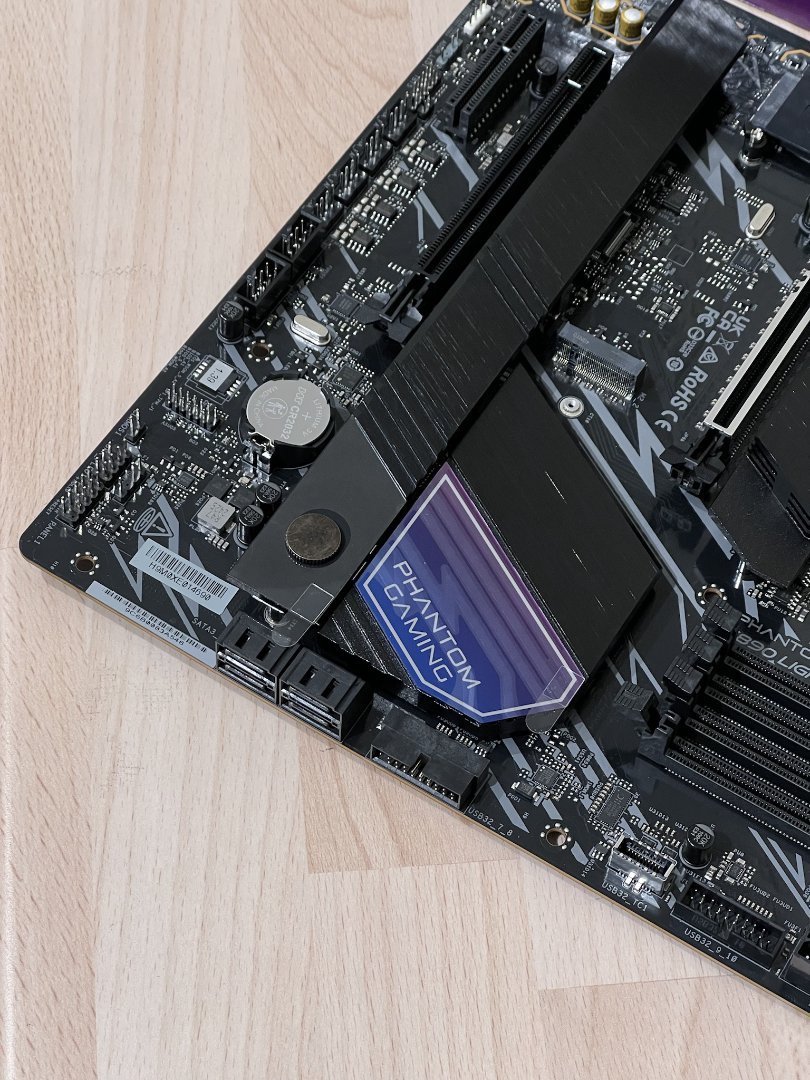

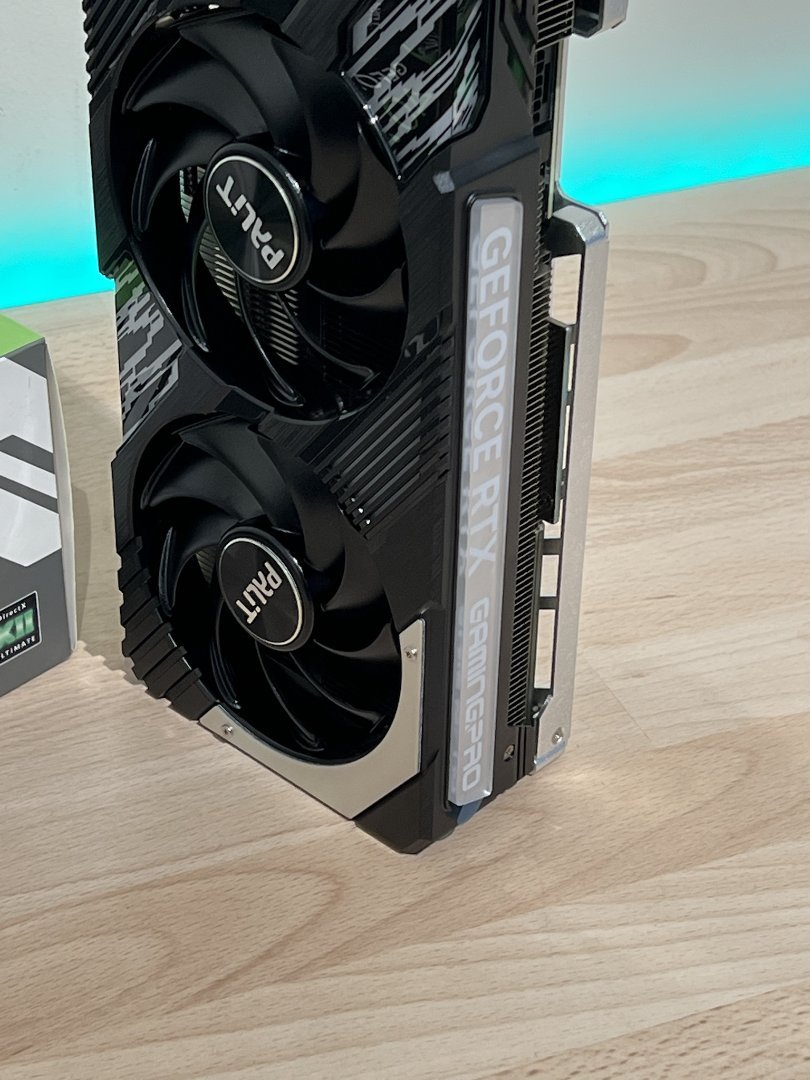

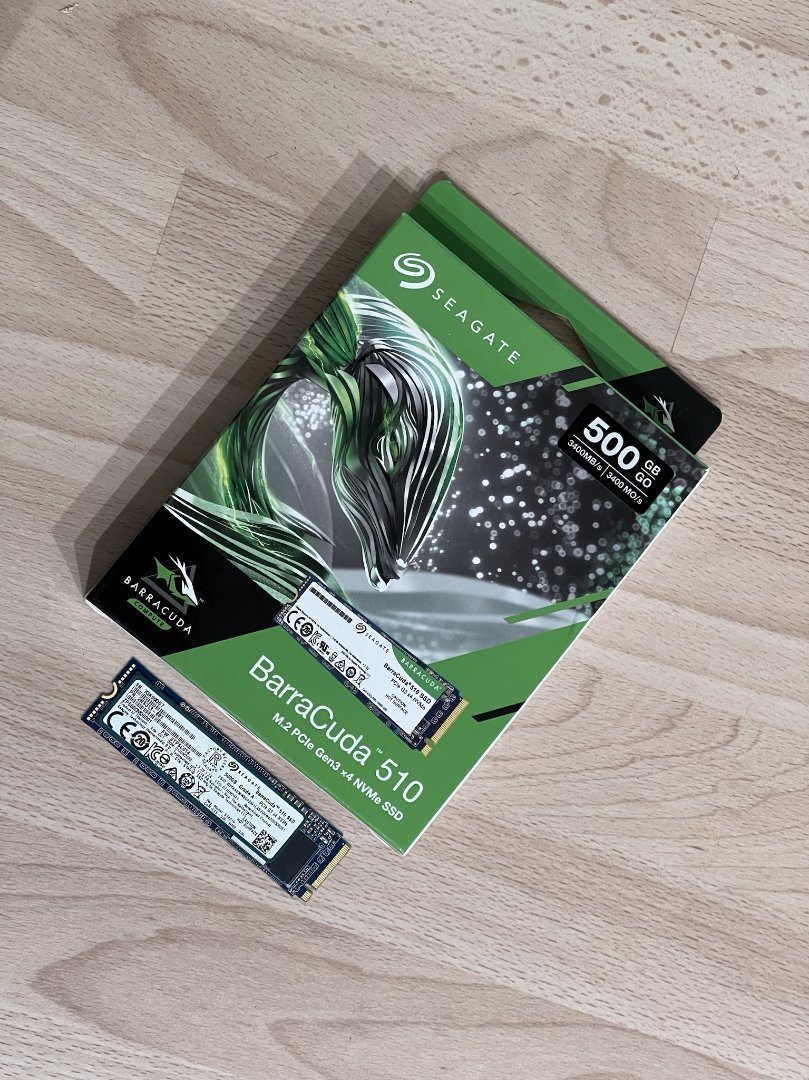

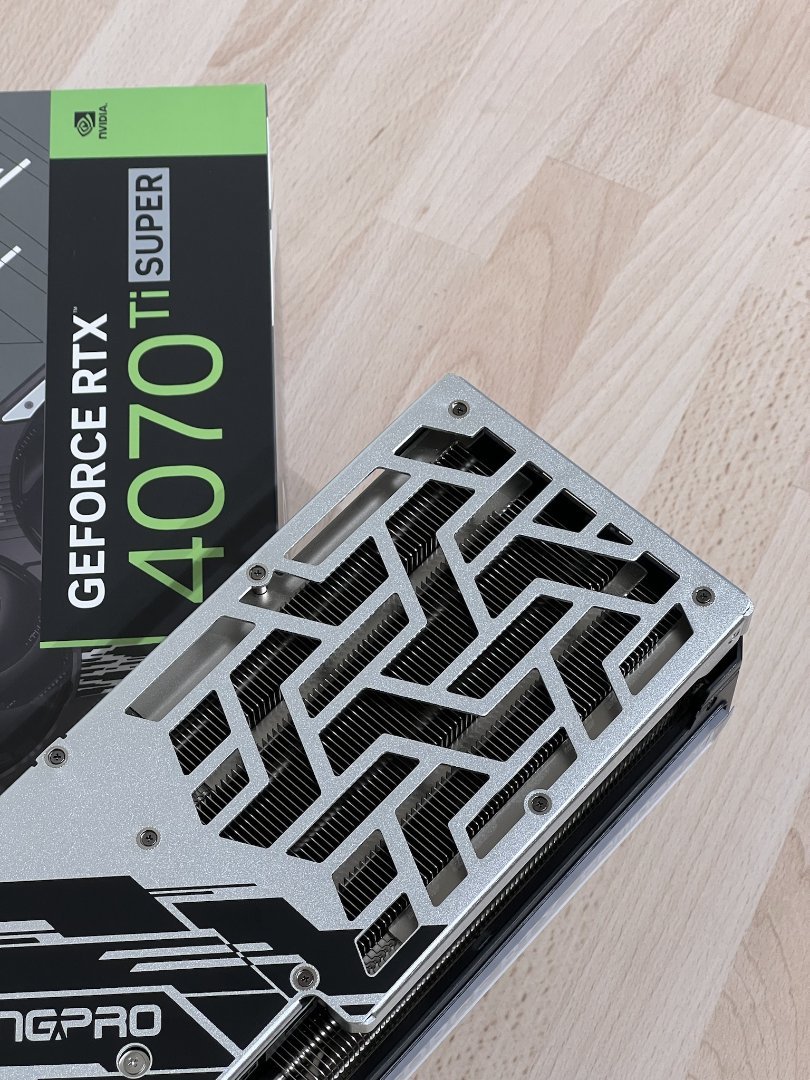

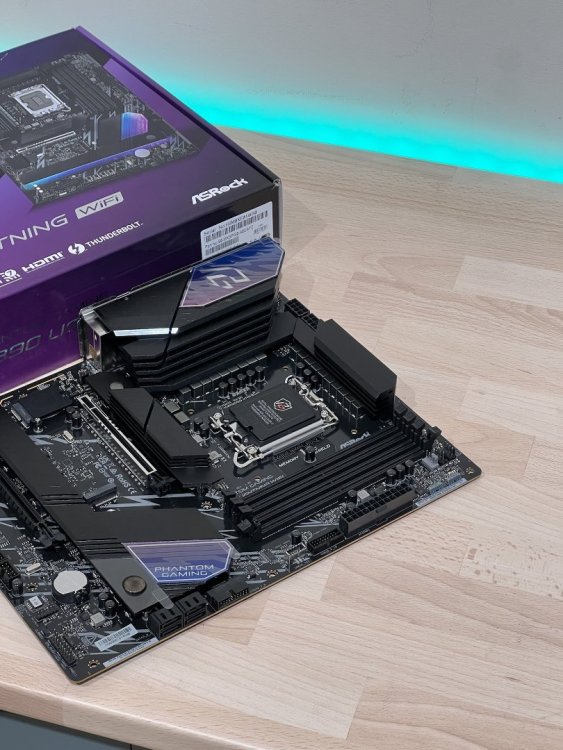

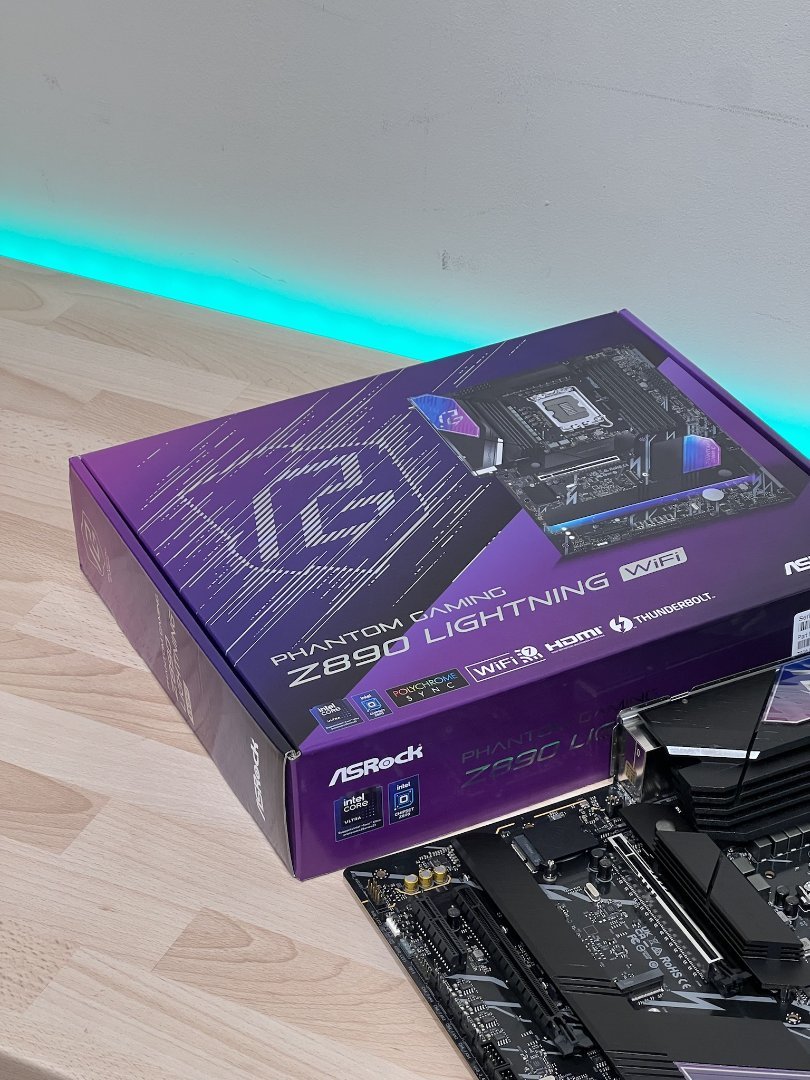

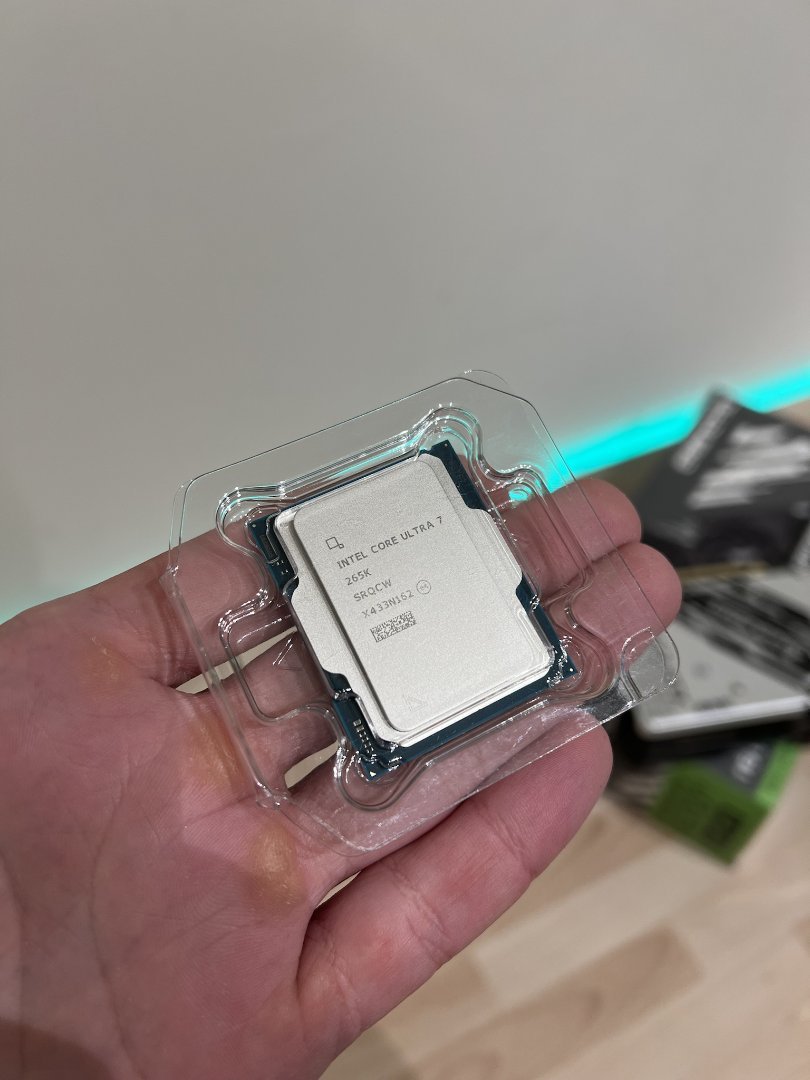

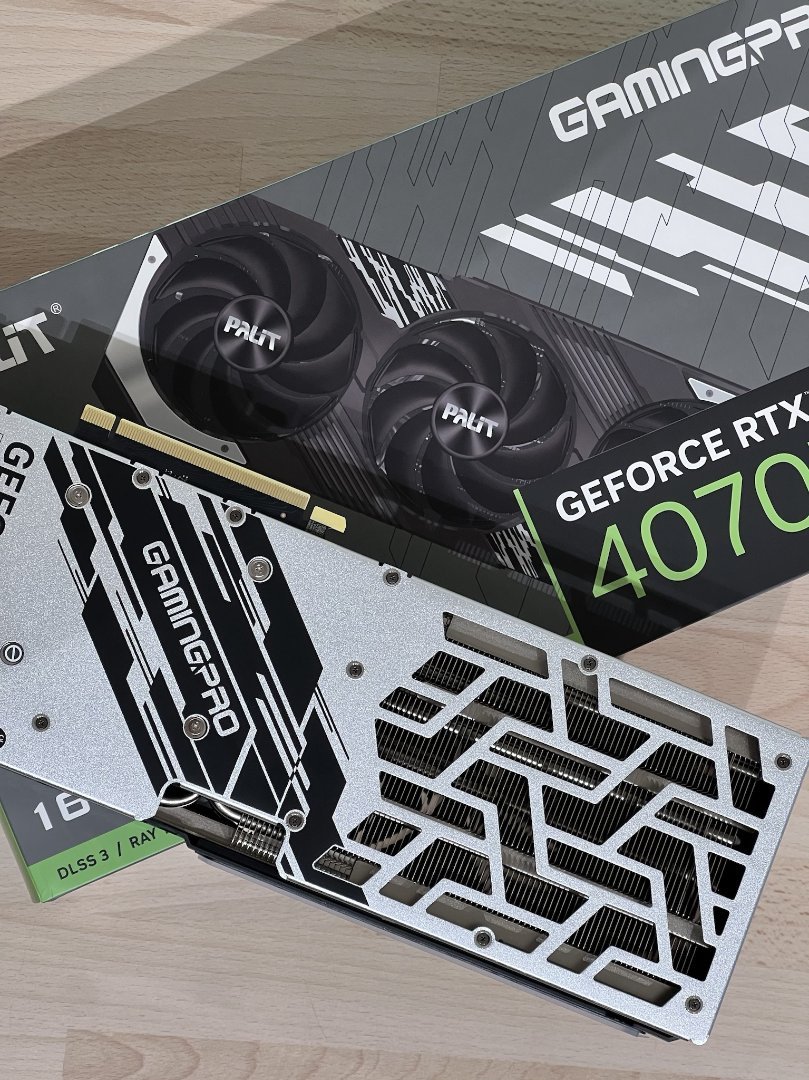

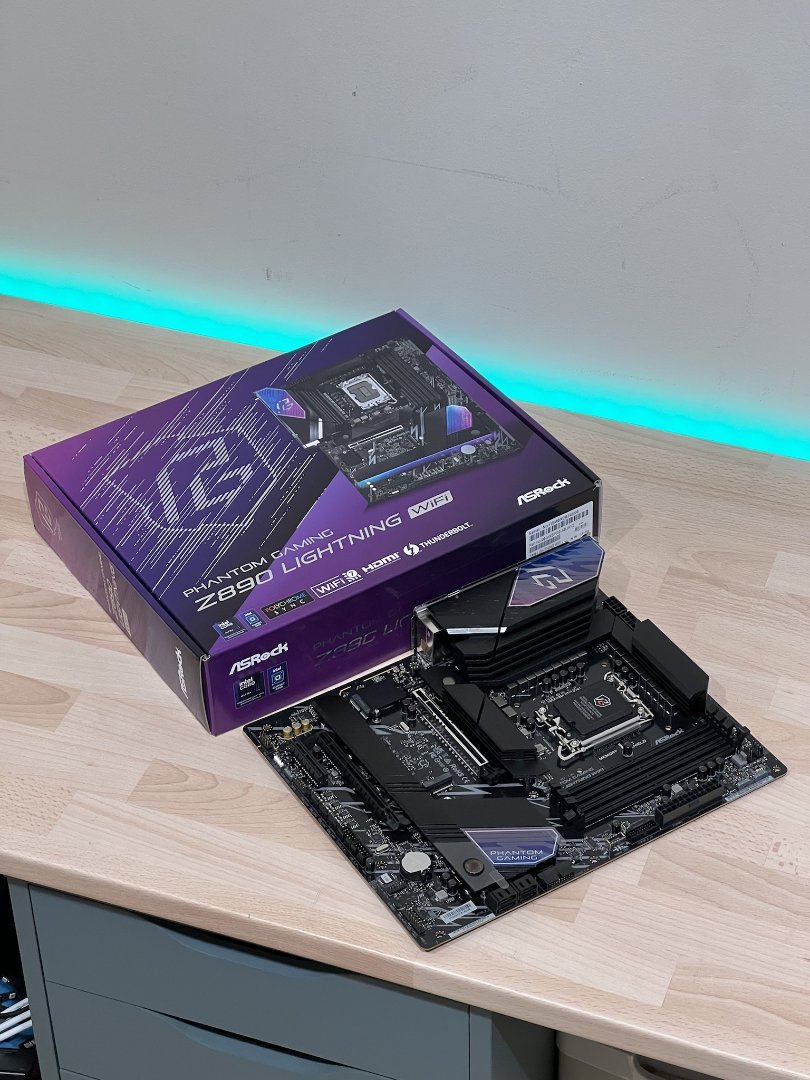

Hello everyone! Excited to do my best in this competition and thank you to Thermaltake and all the sponsors for supporting the modding community! I'm still brainstorming over what to do for this project, so for starters, let me just show you some of the goodies that came from the sponsors!

Hawk's Pyramid - Thermaltake Core P5 Mod by Alessandro Zaiti / Explore Modding. Hawk's Pyramid is a concept inspired by Ancient Egypt, with golden accents and wooden structure. Everything was handmade and the case was modified to allow for a different hardware layout. It features a couple of "easter eggs", such as the sponsors logos amongst the hieroglyphs at the back, and the layout of the hardware actually resembles the internal structure of a pyramid, as you can see from the writings on some of the parts (queen's chamber on the GPU, king's chamber on the MB and subterranean chamber on the PSU). Full Thermaltake custom watercooling, PSU and fans were used in this mod. P.S.: there's the name "St.Jimmy's PC Modding" in the signature because it's a three years old mod and I changed name since then. Full worklog video:

Gotta give this to my buddy Calen Saddler! Been following his process since the very beginning!
