BuildLog - Thermaltake x9 (nameless; open for names..)

Recommended Posts

Hello, I want to share with you what i do in my freetime. I´m building pc´s for some of my good friends and this is one of them. It is still in progress and i´ve done some work actually. I know it´s much for the first post, but I missed to post this project here... :(



Specs:



Tower - Thermaltake x9

Cooling - Custom Watercooling with 2 loops



Hardware:



CPU - 5930K

GPU - MSI GTX980Ti Gaming 6G (2x)

MB - MSI Gaming 9 ACK

RAM - HyperX Predator 2800mhz (4x8gb)

PSU - Corsair RM1000i (Custom cable)

SSD - ??

HDD - ??



Cooling:

CPU - EK-Supremacy Evo Nickel

GPU - EK-FC980 GTX Ti Acetal+Nickel

MB - EK-MOSFET MSI x99 Gaming Nickel

RAM - EK-RAM Monarch x4 Nickel / EK Ram Monarch Module Black

Pump - EK-XTOP Revo D5 PWM - (incl. Pump) / EK-XTOP Revo D5 PWM - (Plexi incl. Pump)

AGB - EK-RES X3 150Lite

Radiator - EK-CoolStream XE 480



work in progress.







I did the first test for the positions of the components. The inner of the Case will be coverd with Acryl. The front will get a special feature.



img_4644cjulv.jpg img_4645oeuqp.jpg img_4646pruu3.jpg img_4657b9js6.jpg img_46591vyt2.jpg img_46630banr.jpg img_4671qglj1.jpg img_4674fvl9t.jpg img_467840ypu.jpg img_4679apxpp.jpg





Then I made a few components ready for watercooling. One graphics card cooler was still missing.



img_468454ues.jpg img_4688ciuij.jpg img_4733wyukz.jpg img_47387kuwl.jpg img_4740gtuqg.jpg img_4743zguqz.jpg







Share this post


Link to post
Share on other sites

I decided to cut some parts of the case cause it doesn´t fit for me. For the graphiccards backplate i made some decals as my friend wished.



img_4744gnonb.jpg img_4745umqf3.jpg img_474769oz1.jpg img_4748btpgl.jpg img_4749k1qpr.jpg img_4752liql6.jpg img_4753i2qbg.jpg img_475456rkb.jpg





Then i did some work to clean up the inner of the case.



img_489513o4u.jpg img_4897w3oek.jpg img_4898y7p0k.jpg





A great thanks for a nice support to Nanoxia, the CoolForce angle fits quiet nice. To fit the motherboard I made some holes in the acryl plate of the mainboardtray. The pumps are already mounted.



img_4901ubuvw.jpg img_4908qnuc1.jpg img_4910yyujb.jpg img_49127oucm.jpg img_49214wusq.jpg img_4923n3u7a.jpg img_4927c2ukn.jpg

Share this post


Link to post
Share on other sites

The inner of the case got some new stuff. I´ve mounted the resorvoirs und fixed the acryl. The radiators got some decals and the plan for the front is set now.



img_5028qkbad.jpg img_5029cmxp3.jpg img_503175lgx.jpg img_5037ebldv.jpg img_5042zeyey.jpg





The first thing I made was a frame for the display that will be insert in the case. I found some aluminium profiles that I didn´t used at another project. They fitted perfectly with the display. I had to make some changes at the profiles, so that they fit in the front. Between the profile and the case I will insert a 3mm black acryl plate.



img_5113fex1d.jpg img_51155oxbm.jpg img_51168gxy8.jpg img_5118jlype.jpg img_5119mvx4i.jpg



At the front of the case I made a cut for the cables. In order ti hide them I lead the cables unter the acryl plate of the pumps. The power supply and the HDMI cable for the display are already laid.

After this was done, I have begun milling the first cable openings into the acrylic plate under the motherboard. I am not finished yet and still needs a little reworking. Everything is just done by hand and I am not a CNC milling machine.



img_53450pqa1.jpg img_5346neq54.jpg img_5354esrse.jpg img_53590hpt1.jpg img_5365y5oft.jpg img_5366cbr71.jpg img_5368n7py8.jpg img_5369tlp8h.jpg img_5370qmra5.jpg

Share this post


Link to post
Share on other sites

Most of the acryl plates in the inner of the case are cutted and fixed. The screws will be changed and combined with washers from Grosumodz. The cables of the pumps are now sleeved and out through the bottom. Between the floors, I cleaned up a bit. The edges of the acrylic plates still get a chamfer, then they can already be painted. The case will be painted again, when everything else is finished.



Most of the acryl plates in the inner of the case are cutted and fixed. The screws will be changed and combined with washers from Grosumodz. The cables of the pumps are now sleeved and out through the bottom. Between the floors, I cleaned up a bit. The edges of the acrylic plates still get a chamfer, then they can already be painted. The case will be painted again, when everything else is finished.



img_53736mj3u.jpg img_5378qtj2a.jpg img_5381jyk77.jpg img_5382sskac.jpg img_5388hck7w.jpg img_5389llk9t.jpg img_5391jfjb9.jpg





This is it for now. Starting today I will post all updates. I hope you enjoy my project.

Share this post


Link to post
Share on other sites

Today I once again taken the time to do something more. Currently there are to do a lot of other things, but the system needs to be done.

A huge thanks go to Nanoxia! All angles, whether the G1 / 4 or 12/10 submitted by CoolForce, they have been put to me by Nanoxia. The quality of the fittings and angle is very good. The 12/10 fittings fit very great on the Tubes.

Cables for GPUs and motherboard have been laid and adapted to the power supply inside.

I hope you like my work.

img_5554d6q8x.jpg img_5555mzret.jpg img_55567bp3o.jpg img_5557pvpn8.jpg img_5559cvr0q.jpg img_55601qp06.jpg img_55612eoic.jpg

Share this post


Link to post
Share on other sites

By the way, what's the point of having GPUs in liquid cooling loop?

I see no performance upgrade between water and air cooling.



I have 2 MSI Limited 980Ti (golden dragon) and OC'ed to 1503 - 1970 Mhz  in Core/Memory clock and don't have any issues with heating or  throttling ...



Maybe just aesthetics? Then it would make sense :rolleyes:

Share this post


Link to post
Share on other sites

Oh. Just noticed this MB... Doesn't like it. They have very poor build quality exactly for this MB. You can check reviews on Amazon, newegg, etc.

Hey, this build is for a good friend of mine. The motherboard, GPU, CPU, etc. are existing parts from his old PC.



By the way, what's the point of having GPUs in liquid cooling loop?

I see no performance upgrade between water and air cooling.



I have 2 MSI Limited 980Ti (golden dragon) and OC'ed to 1503 - 1970 Mhz  in Core/Memory clock and don't have any issues with heating or  throttling ...



Maybe just aesthetics? Then it would make sense :rolleyes:

At moment I can´t say something about this. I will OC the hardware after finishing the PC. It isn´t only for aesthetics, I have a "old" 780Gtx, with a Aquacomputer water cooler. If I would try to run it with air the mosfets will be burned after less then 5 minutes..

Share this post


Link to post
Share on other sites

Hey, this build is for a good friend of mine. The motherboard, GPU, CPU, etc. are existing parts from his old PC.



At moment I can´t say something about this. I will OC the hardware after finishing the PC. It isn´t only for aesthetics, I have a "old" 780Gtx, with a Aquacomputer water cooler. If I would try to run it with air the mosfets will be burned after less then 5 minutes..



Let me guess.... Reference 780GTX? This is a very bad example, since they had defect, which causes MOSFET to explode.

They had a recall on almost all reference 780GTX and you had to do and exchange it. So this is not to due air cooling

Share this post


Link to post
Share on other sites

Let me guess.... Reference 780GTX? This is a very bad example, since they had defect, which causes MOSFET to explode.

They had a recall on almost all reference 780GTX and you had to do and exchange it. So this is not to due air cooling

It´s an Inno3D ref yes. But I set the powerlimit to 300W so i think it´s ok to burn under air cooler. I can test my 980gtx tomorrow. :D

Share this post


Link to post
Share on other sites

My dear friends, we are approaching the end. Yesterday the Liquid has arrived and today I have prepared the system to fill. If the frame of the screen is painted, the front is completed. On the side walls I am already working. Tomorrow they will be painted.

I hope you enjoy it.


img_5564wvq2g.jpg img_55687bpne.jpg img_5571csr6e.jpg img_55720mrzk.jpg img_5574wnozp.jpg img_5575f1rkk.jpg

Share this post


Link to post
Share on other sites

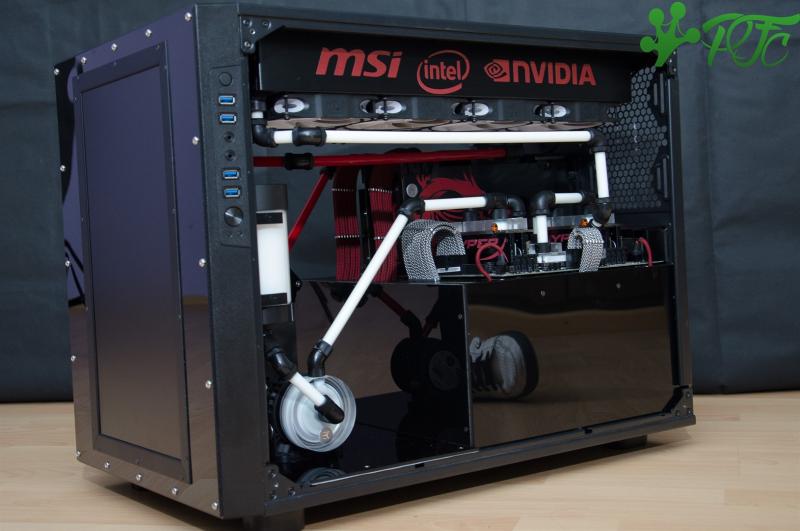

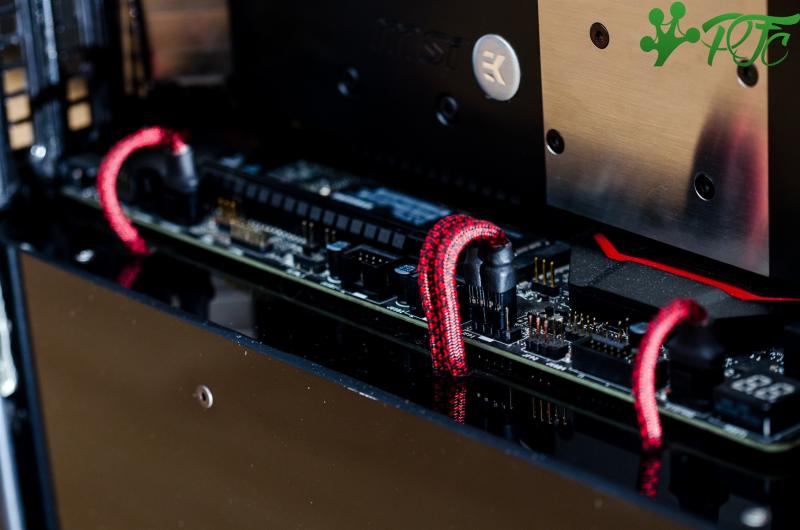

Today I will show you the final pictures of the Thermaltake Core x9. My friend who ownes the build was kind enough to send me some photos. At the time I finished the build there was so many stress that I can´t made them myself. The sidepanels were removed for the photos in order to cancel the mirror effect. The sidepanels where rebuild with acrylic plates.
